Classic Style Pocket Door Kit | For Single Door
Description
Tired of traditional doors that limit your space? Say hello to the Single Pocket Door System! Designed for your convenience, it adds elegance and practicality to your living space.
Unlock Your Space's Potential: This system frees your home from conventional door constraints. By sliding into the wall, it maximizes your living area's use, providing flexibility and a dynamic environment.
Sleek Style and Seamless Integration: The ECLISSE Single Pocket Door System offers refined aesthetics and minimalist design, blending effortlessly with any decor. Whether your style is modern, industrial, or traditional, it adds sophistication to your interior design.
Technical Spec: Download
Installation Instructions:
ECLISSE is a renowned and innovative brand that has left an indelible mark in the field of interior design and architectural solutions. With a strong focus on quality and functionality, ECLISSE is widely recognised for its ingenious sliding pocket door systems.
These space-saving solutions have revolutionised the way we perceive and utilise space within our living and working environments.
ECLISSE products are meticulously engineered to ensure smooth and noiseless operation, seamlessly blending into any design aesthetic. Their commitment to excellence makes them a trusted choice for homeowners, architects, and interior designers alike.
Materials:
The pocket doors hardware kit is made from high-quality materials to ensure the longevity and durability of the pocket door systems. The frames are constructed with galvanised steel, renowned for its strength and stability. This robust material provides a solid foundation for the pocket doors, guaranteeing reliable performance for years to come. We also offer a range of wooden door options, crafted with exceptional craftsmanship and attention to detail. These premium materials ensure that your Pocket Doors maintain their integrity and beauty over time.
Warranty:
The steel pocket system, including the top track holder and steel doorpost, is backed by a 15-year guarantee against material and manufacturing defects. This warranty demonstrates the confidence in the durability and reliability of the products.
Please note that the guarantee applies to materials and any manufacturing defects, but it does not cover installation.
Additionally, the wooden jamb kit which is primed, paint-ready white, which includes dust brushes and a recessed wooden door post with internal rubber bumpers, is covered by a 5-year guarantee.
We take pride in providing products that meet the highest standards of quality, and our warranty ensures that you can enjoy the benefits of Pocket Doors with confidence.
In order to receive a refund on returned goods please ensure that:
- Goods are returned within 14 working days of receiving them
Sales to consumers from our website are governed by the Distance Selling Regulations, these do not apply to business to business sales.
In accordance with the Distance Selling Regulations, consumers may return the goods to us within 14 working days of receiving them for whatsoever reason.
- The goods are returned to us in reasonable condition and unused. If the goods arrived to you damaged please ensure you repackage the goods after inspection securely.
Please note it is not necessary to assemble the product to inspect them or to check the size (as it is clearly labelled on the packaging) so returns which have been assembled will be subject to our claim for breach of statutory duty by the consumer.
- You contact us to request a RETURNS NUMBER and complete our RETURNS FORM.
We request that the consumer obtain a RETURNS NUMBER from us. You will need to add this to the RETURNS FORM which you can download here. Or we can email you a copy.
Please include the form inside the packaging or put it into an envelope and securely attach it to the outside of the packaging. We cannot process the return without the form with the returns number. If you have any questions or are experiencing any problem with this process please email us.
- The cost of return to us and the responsibility that the goods are returned in reasonable condition will be borne by the consumer.
We will pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
If you have a problem with the return transport shipping please let us know and we will endeavour to organise this for you.
*** Please ensure that if you have opened the packaging that you carefully repack and securely repackage the goods to ensure that they arrive back with us safely. We advise taking a photograph of any repackaged goods in case any damage occurs during the return journey to us.
- You should expect to receive your refund within 14 working days of us receiving your return.
We will endeavour to process your refund within 14 working days of us receiving the return, however, in many cases you will receive a refund more quickly.
£0 - £500 Order - £18 delivery
Over £500 – £36 delivery
---
We recommend you do not book any installation work until you have received goods as occasionally the couriers can experience problems or delays trying to make delivery.
--------
If you would like to place an order for delivery outside of Great Britain please send us an email with your full delivery address and details of what you would like to order. We can then generate a quotation for you.
Placing an order before 1.00 pm on a working day generally means you will receive the goods on the next working day, if you fail to receive them in this time please contact us via email
We recommend you do not book any installation work until you have received goods as occasionally the couriers can experience problems or delays trying to make delivery.
Delivery is to the nearest roadside point to the delivery address accessible by our couriers and does not include delivery into the building or site. Ease of access to the delivery address is the receivers responsibility and any special requirements must be agreed at the time of order. Estimated delivery times are between 8am and 6pm.
Note:
Wire Ready Kits have lead-time from placing an order is 4-5 weeks.
Small items such as handles are sent by Royal Mail and so may take 2-3 days to arrive.
How to Order | Product Information
The pocket door systems come in standard overall frame sizes designed to perfectly fit a wide range of standard door panel sizes. Our technical specs give you all the information you need to decide on your choice of frame. You need to make sure you have enough overall space to build the stud work to accommodate and install the overall frame. You can then look at the range of overall frame sizes that will fit into the space you have available and the technical spec will tell you the door panel sizes that the different frames will accommodate.

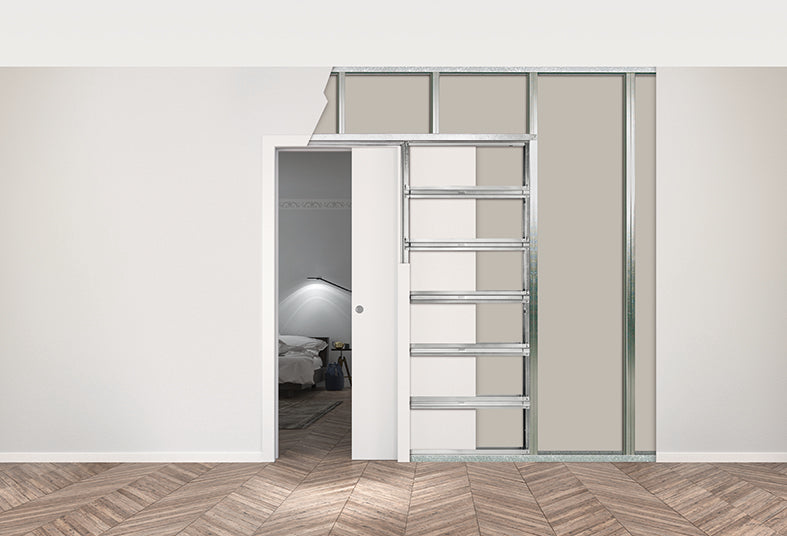

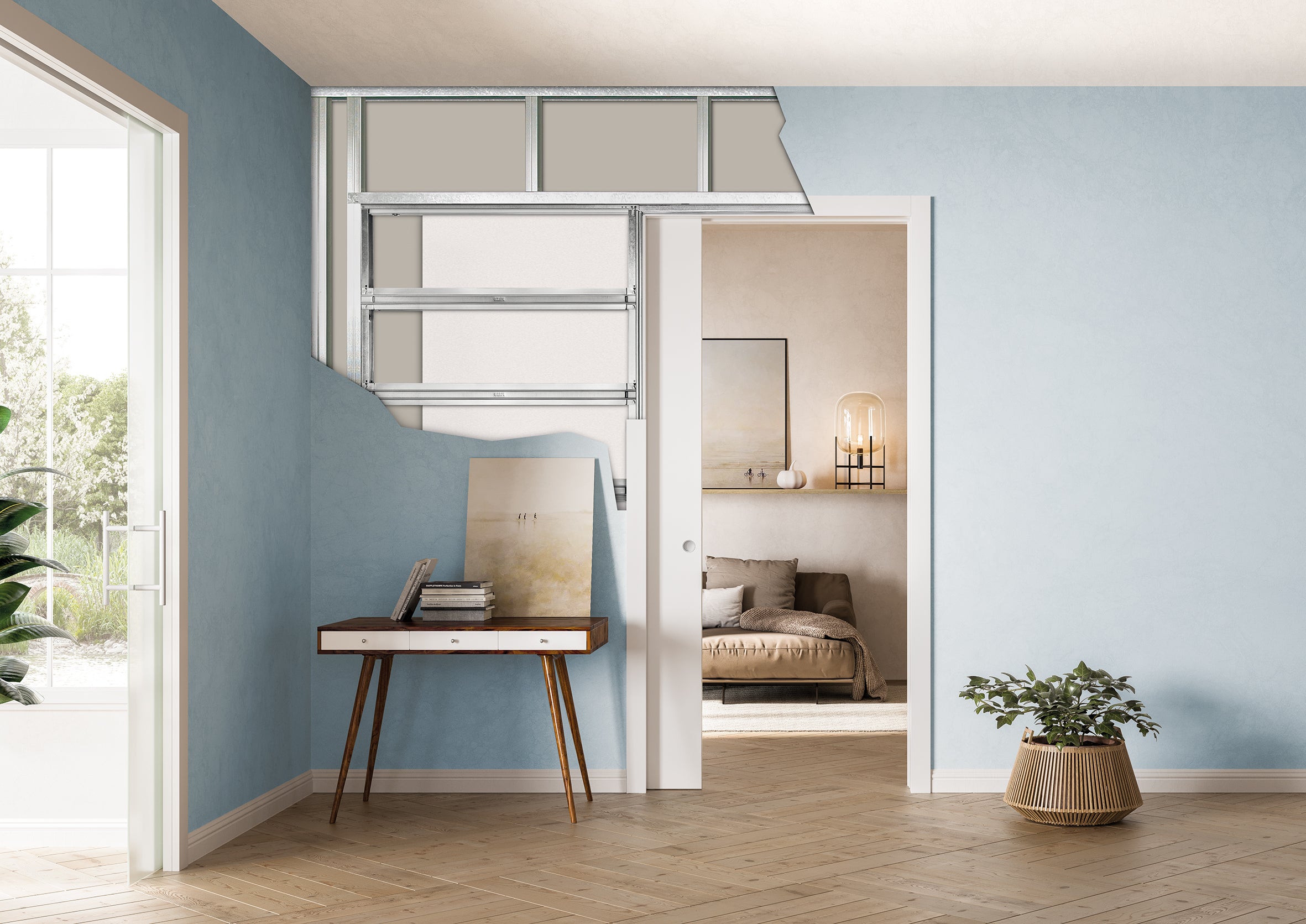

What is included in the kit?
A Galvanised steel frame
A strong and quick-click frame that assembles into a complete unit comprising of a full pocket and a track.
Runners
Tested to 100,000 cycles (that’s around 25 years of average use!)
Extractable Track
The track can be extracted without having to break into the wall.
Front and rear door stop
Can be adjusted to determine how far the door protrudes from the pocket.
Metal anti-warp door profile
Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly.
Self centering door guide
Clicks into frame, doesn't screw into the floor, so it is perfectly centred every time.
Fixings
Even the screws to attach the plasterboard to the frame are included.
Jamb kit
Comes complete with jamb kit made with a beechwood veneer* that is primed, paint-ready white. The jamb kit includes dust brushes and recessed door post with integral bumpers for a professional finish.
Download PDF detailing the parts in detail.
-------
Optional Accessories that are not included that you might want to add on.
- Bi-directional Soft Close with anti slam
--------
NOTE:
- This product does not include a door panel.
- When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.
How to determine your frame/door panel size?
The pocket door systems come in standard overall frame sizes designed to perfectly fit a wide range of standard door panel sizes. The technical specs give you all the information you need to decide on your choice of frame. You need to make sure you have enough overall space to build the stud work to accommodate and install the overall frame. You can then look at the range of overall frame sizes that will fit into the space you have available and the technical spec will tell you the door panel sizes that the different frames will accommodate.
Technical Information
Door Panel Weight: 100kg (150kg available on request)
Door Thickness: 35 - 44mm
Finished wall thickness options: 95mm, 100mm, 115mm, 125mm or 140mm (90mm frame double boarded)
System type: For use with timber doors
Downloads
The below downloads are for the single door system and the double door system in the classic pocket range. Please make sure to use the correct technical data sheet for your chosen system.
Studwork Information
Studwork Information
When you choose an ECLISSE pocket door system the first thing to consider is matching your stud thickness to the right ECLISSE pocket door thickness and the table below shows you how to do this. Why are you looking to match it up? Because when it matches up, plaster boarding the pocket and the rest of the wall is as quick and easy as it possibly can be.
We recommend that you use either timber or metal stud in the table below. These are the most readily available stud work sizes and to make life easier we make frames to match.
|
Timber Stud |
Nominal Size |
Actual Dimensions |
Best Fit Eclisse Pocket Door System |
Assemble frame to: |
Plasterboard option for the pocket and for the stud work |
|
CLS- Canadian Lumber Standard |
3” x 2” / 75 x 50mm |
63 x 38mm |
95mm finished wall thickness |
70mm pocket thickness |
|
|
4” x 2” / 100 x 50mm |
89 x 38mm |
115mm finished wall thickness |
90mm pocket thickness |
|
|
|
Scant/ construction timber |
3” x 2” / 75 x 50mm |
69/70 x 47*mm |
95mm finished wall thickness |
70mm pocket thickness |
|
|
4” x 2” / 100 x 50mm |
94/95 x 47*mm |
125mm finished wall thickness |
100mm pocket thickness |
|
*This dimension can vary
Installation Instructions
The below downloads are for the single door system and the double door system in the classic pocket range. Please make sure to use the correct technical data sheet for your chosen system.
Benefits & Attributes
About ECLISSE
ECLISSE, is a trusted manufacturer of high-quality pocket door solutions. The ECLISSE Pocket Doors are meticulously designed to transform your living spaces, offering a perfect blend of functionality, style, and space-saving convenience. You can unlock the full potential of your interiors, optimising room layouts and enhancing the overall aesthetic appeal.
The pocket door systems revolutionise traditional door openings by seamlessly integrating the doors into the wall cavities. This innovative approach allows the doors to slide effortlessly into the wall, freeing up valuable floor space and creating a harmonious flow between rooms. Whether you're looking to maximise space in residential homes, commercial spaces, or hospitality environments, these Pocket Doors are the ideal choice.
But it doesn't stop there. ECLISSE goes beyond just pocket door frames by providing a complete solution. Offering a range of accessories, including soft-close mechanisms, self-closing systems, and jamb kits, to enhance functionality and add those finishing touches to your pocket door installation.
With the collection of Pocket Doors, you can experience the benefits of increased usable space, improved traffic flow, and a more aesthetically pleasing environment.
Transform your living or working spaces with our innovative and stylish pocket door solutions.
Browse the collection and discover the possibilities that these pocket doors will bring to your interior design projects.
What makes the ECLISSE pocket door the best choice for pocket door systems?
Crafted with precision engineering and attention to detail, the pocket door systems are built to last.
Utilising high-quality materials, including galvanised steel frames, which provide strength, stability, and durability. The range includes various configurations to suit different requirements, from single pocket doors to double pocket doors for wider openings. We even offer fire-rated options for enhanced safety and peace of mind.
Easy Installation
Installation is made easy with the user-friendly systems. We provide comprehensive instructions and support to ensure a smooth and hassle-free installation process. The pocket door systems are suitable for both new construction projects and retrofits, offering versatility and adaptability to any setting.
Guarantee / Warranty
The Eclisse galvanised steel pocket system, including the top track holder and steel doorpost, is suitable for use with standard type doors. The wooden jamb kit, including dust brushes and a recessed wooden door post with internal rubber bumpers, is also supplied.
- The Eclisse steel system is guaranteed for 15 years against material and manufacturing defects. The installation is not our responsibility and is not covered by our guarantee.
- The wooden jamb kit is guaranteed for 5 years.
- A 2-year guarantee is offered on accessories.
FAQ
Do the pocket door frames come supplied with the timber doors?
No, the doors need to be ordered separately. Please click the link to view our range of Interior Doors. We have specific pocket door frames for the 10 standard door sizes in the UK.
Please note that not all of our interior doors range will fit the pocket door system.
Please ensure that you are not choosing an incorrect door style to fit the pocket door system. If you want to check with us, drop us a message on our chat box.
What is a jamb kit?
A jamb kit is a component within the classic pocket door systems that is used to cover the gap between the door frame and the wall, enhancing the overall appearance of the doorway. Download PDF explanation.
ECLISSE provide a jamb kit (timber lining kit) with the Classic pocket door systems, which will then require finishing off with architrave. Please note that not all pocket door suppliers offer a professional jamb kit with their products.
Key information about the jamb kits:
- The jamb kit is a timber lining kit attached to the pocket door framework, covering the edges of the door when closed to hide the top and the pocket.
- Jamb kits are only supplied with the Classic styles and are not required for the Syntesis Flush Collection.
- We do not supply the final decorative architrave. If you are looking for a door architrave, please click the link here to discover our range. Door Architraves
Are there different jambs for different frames?
Yes, the single and double Classic Pocket Door frames can be assembled to two different finished wall thicknesses. As a result, we offer two different sizes of jamb kits depending on whether you require a 100mm or 125mm finished wall thickness. When ordering, make sure you select your wall thickness and we will include the correct size for your order.
Does the pocket door frame require maintenance or cleaning?
No special maintenance or cleaning is required for the Eclisse steel unit, as it is guaranteed for 15 years and has maintenance-free parts. If access to the track is needed, follow these steps: Remove the architraves (if any) and move the jambs to one side of the door. Loosen the lock nuts on the brackets at the top of the doors and slide the door out. This provides access to the running track above the opening. Remove the visible small screws, being careful to leave the larger screws in the special holes undisturbed. The track can then be pulled toward the door post and removed. Follow the reverse procedure for re-assembly.
Do you offer installation?
No, we supply only. Our systems are relatively easy to install by builders, joiners, and competent DIY'ers. You can find installation videos on the main collection page for the pocket door systems.
Does this kit come with soft close?
No, the kit does not come with soft close as standard but you can add a soft close mechanism to your order. Choose from soft close with anti-slam or bi-directional soft close with anti-slam for the ultimate in smooth operation:
Installation Instructions
It is straightforward and easy to install a Classic Single Pocket Door System. This video will show you how. The Classic Single Pocket Door System can assemble to create a 75mm thick frame or a 100mm frame, for information on how to change the thickness of the frame please see the instructions
Installation Instructions
Assembling the frame to the wider pocket thickness i.e. 100mm or 95mm for finished wall thickness 125mm and 115mm respectively using the extension brackets
