Cabinet & Wardrobe Pocket Door System | Heavy Duty | ALT-ST20

£188.00

Delivery 2-3 weeks

Description

The ALT-ST20 is a heavy-duty cabinet and wardrobe pocket door system designed for taller, wider doors and more demanding residential joinery applications. Featuring smooth soft-close action and precise door alignment adjustment, it allows doors to swing open and retract fully into the cabinet carcass, leaving the opening completely clear.

Available for both overlay and inset door designs, the ALT-ST20 is ideal for large appliance garages, tall cabinetry, utility rooms and bespoke storage walls.

Please note:  Doors are not included

Minus Plus
More details Right

The Sugatsune ALT-ST20 pocket door system is engineered for projects where increased door height and weight capacity are required, while maintaining a refined, concealed appearance.

Designed for cabinet-scale and wardrobe applications, the system allows doors to swing open and slide smoothly into the cabinet body, eliminating door obstruction and improving accessibility. An integrated soft-close mechanism ensures controlled, quiet operation, even with taller or heavier doors.

The ALT-ST20 range is available in two door styles:

  • ALT-ST20-D10 for overlay doors, where doors sit on the face of the cabinet
  • ALT-ST20-D360 for inset doors, where doors sit flush within the cabinet opening

Multiple slide configurations are offered depending on door height and weight, ensuring stability, smooth travel and long-term performance. Doors are manufactured separately by a joiner or cabinet maker, allowing full flexibility over materials, finishes and detailing.

Typical applications include tall kitchen cabinetry, utility cupboards, appliance garages, wardrobes and bespoke storage walls where traditional hinged doors would restrict access.

Key Features

  • Cabinet & wardrobe pocket door hardware (doors not included)
  • Designed for taller and heavier doors
  • Integrated soft-close mechanism
  • Swing-open, retract-into-cabinet action
  • Adjustable door alignment
  • Suitable for overlay and inset door designs
  • Premium Japanese-engineered hardware by Sugatsune

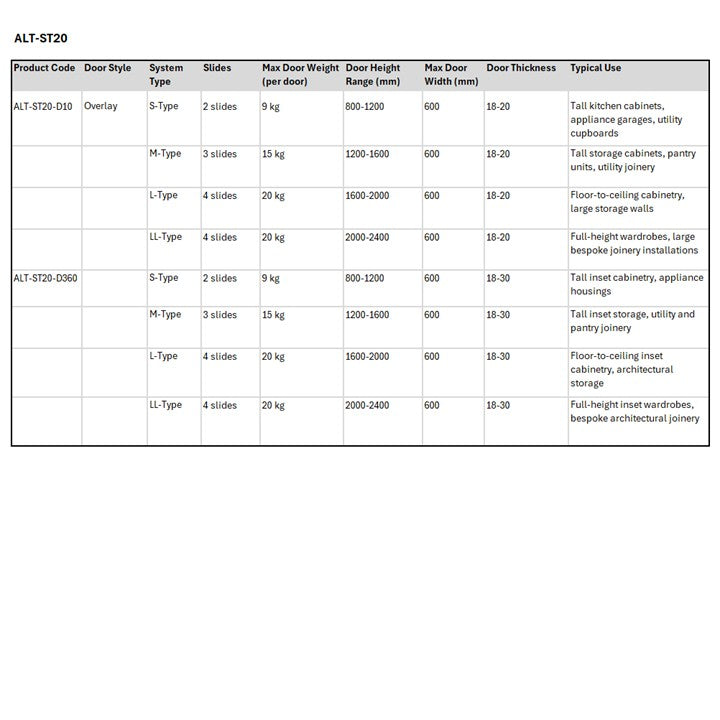

Door Height Ranges

  • 800-1200 mm (Max weight 9kg)
  • 1200-1600 mm (Max weight 15kg)
  • 1600-2000 mm (Max weight 20kg)
  • 2000-2400 mm (Max weight 20kg)

The hardware configuration is automatically determined by the selected door height to ensure smooth operation and correct door layout.

Door Width

Maximum 600mm

Important note

Doors are not supplied. This product includes the pocket door hardware required to suit the selected door style and door configuration.

Need help specifying?

If you’re unsure which door style or height range is right for your project, our team is happy to help you specify the correct system.

Please click to access the installation manual for the overlay or inset door system:

ALT-ST20 Overlay Doors

ALT-ST20 Inset Doors

Sugatsune is a Japanese manufacturer renowned worldwide for precision-engineered architectural and furniture hardware. Founded in 1930, the company is recognised for combining advanced mechanical engineering with refined design, producing hardware solutions that are durable, discreet and exceptionally smooth in operation.

Sugatsune products are widely specified in high-end residential, commercial and architectural projects, particularly where reliability, longevity and clean detailing are essential. Their pocket door, hinge and sliding systems are engineered to perform consistently over many years of daily use, with extensive in-house testing for load capacity and cycle performance.

Key attributes

  • Japanese precision engineering
  • Designed for smooth, quiet and controlled operation
  • High cycle-life testing for long-term reliability
  • Discreet, design-led hardware for cabinetry and architecture
  • Widely specified by joiners, designers and architects worldwide

Sustainability & environmental approach

Sugatsune places strong emphasis on product longevity as a core sustainability principle. By designing hardware that lasts for decades rather than years, material waste and replacement demand are significantly reduced.

Environmental considerations include:

  • Long-life product design to minimise replacement and waste
  • Efficient manufacturing processes with strict quality control
  • Use of durable, recyclable materials where possible
  • Compliance with international manufacturing and environmental standards

Rather than focusing on short product lifecycles, Sugatsune’s approach prioritises durability, repairability and long-term performance as the most responsible environmental strategy.

Why we specify Sugatsune

We work with Sugatsune for projects that demand:

  • Dependable performance
  • Refined movement and alignment
  • Hardware that complements high-quality joinery rather than competing with it

Their systems align closely with our own focus on quality, longevity and thoughtful design.

These products are considered as Special Order Items which cannot be returned for a reason other than a fault with the product.

Please contact us if you would like to discuss your order.

Shipping costs are £15.00 for orders under 1m in length and/or 10kg, and £50 for orders over 1m in length. Please contact us for a bespoke shipping quote.

If you would like to place an order for delivery outside of the UK, then please send us an email with your full delivery address and details of what you would like to order. We can then generate a quotation for you.

The lead time is 2-3 weeks.
How can we help?

Frequently Asked Questions

Cabinet & Wardrobe Pocket Door Systems (UK)

What is a cabinet pocket door system?

A cabinet pocket door system allows doors to slide neatly back into the cabinet carcass rather than opening outward on hinges. This keeps the opening completely clear and is ideal reminding spaces where hinged doors would obstruct access.

Where are pocket door systems commonly used?

Pocket door systems are commonly used in:

  • Kitchens and larders
  • Appliance garages
  • Utility cupboards
  • Home offices
  • Wardrobes and storage walls

They are particularly popular in modern UK joinery and bespoke cabinetry projects.

Are these pocket door systems suitable for kitchens?

Yes. Sugatsune cabinet pocket door systems are widely used in kitchens, especially for appliance garages and tall storage units. The soft-close mechanism and concealed hardware make them ideal for everyday use in busy household environments.

Do the doors sit flush when closed?

Yes. When correctly specified and installed, both overlay and inset pocket door systems sit flush and aligned when closed, maintaining a clean, uninterrupted cabinet front.

What is the difference between overlay and inset pocket doors?
  • Overlay doors sit on the face of the cabinet and cover the cabinet opening.
  • Inset doors sit flush within the cabinet opening for a more traditional or architectural look.

Different hardware variants are required for overlay and inset applications.

Are the doors included with the pocket door system?

No. The pocket door system is supplied as hardware only. Doors are made separately by a joiner or cabinet maker to suit your project. This allows full flexibility over materials, finishes, and detailing.

Are Sugatsune pocket door systems soft-close?

Yes. These systems include an integrated soft-close mechanism, allowing the doors to retract smoothly and quietly into the cabinet without slamming.

Are Sugatsune products suitable for professional joinery projects?

Absolutely. Sugatsune hardware is widely specified by:

  • Joiners
  • Cabinet makers
  • Interior designers
  • Architects

Their products are engineered for durability, precision adjustment, and long-term performance.

What door weights and sizes are supported?

Different configurations support different door weights and heights. Cabinet-scale systems typically support doors up to 15kg per door, with door heights ranging from 500mm to 1600mm, depending on configuration.

Always select the size range that matches your project requirements.

Are these systems available in the UK?

Yes. We supply Sugatsune pocket door systems throughout the UK. Lead times vary depending on configuration, with some items ordered specifically for your project.

Can you help me choose the correct pocket door system?

Yes. Our team can help you select the correct system based on:

  • door size and weight
  • cabinet design
  • inset or overlay style
  • intended use

If you are unsure, we recommend contacting us before ordering.

Are these suitable for residential or commercial use?

These systems are primarily designed for residential joinery, but are also suitable for light commercial environments such as offices, hospitality storage, and fitted furniture.
